Guinevere

Status: Under Construction

Owner: Vernon & Jacqui Lowe

Area: USA Southern States

Hull

Cabin/Saloon Launch. Construction: Tulip Poplar strip.
Hull model: Edwardian style designed by Selway Fisher modified at Bealdon VA, USA in 2006
Built 2008 by Rappahannock Boat Works at Bealdon VA USA
Fit out 2016 by Ronnie Baird & Owner at Bealdon VA & Vonore TN
LOA: 26' 6", LWL: 24' 6", Beam: 6' 6", Draft: 2' 6",
Selway Fisher design with modified Wineglass Transom & Clipper Bow

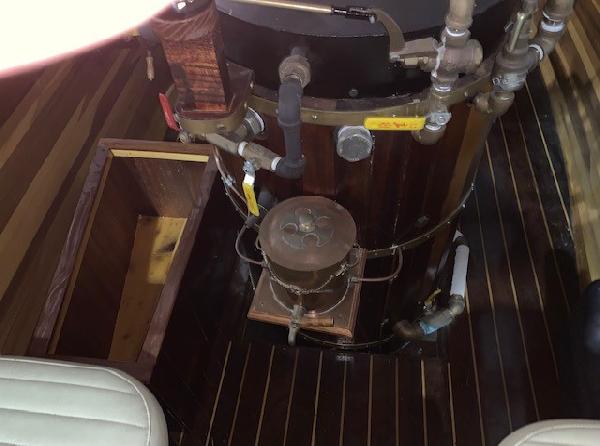

Boiler

Heating area: 55 sqft,
superheater,
engine driven pump, hand pump, Windermere kettle, whistle,

Engine

Double Simple. 3" + 3" X 4"
Built 2009 by Tiny Power at Bealdon VA USA
Design: Tiny Power M Power: 10 HP
Main Bearings - Six sealed ball bearings, Rod Bearings - Sealed bearings on both Big and Little ends, D valves - Bronze with top & bottom drains, Shaft size - 1 1/8"dia, Reverse link, 8" flywheel,

Propeller

Bronze, 3 blades, Right Hand,

History

Ronnie Baird (Rappahannock Boat Works VA22712) built my launch and made a superb job of every aspect of the construction. I had planned to complete the trimming and finishing myself but pressure of business has delayed Guinevere completion.

Added to the register: 2018.10.14. Last Modified: 2022.01.13.
